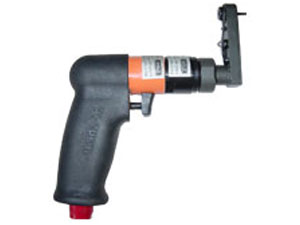

Hi shear Super HLA1202

2 Inch Offset Mini Driver Assembly with
Thin Flush Socket and Super-Key™ (T-Series)

Ordering Information

• Match pin and collar hexes with Super-Key Hex and Socket Hex.
• See table for corresponding complete driver assembly part number and socket length code.
Part Number Example
HLA1202-312-078-T
• Piece Break Down
Hi shear Super HLA1202

Technical Data
Operating Pressure
90 PSIA
Horsepower Rating
0.20
Max Torque Rating (Motor)
60 in. lb. @ 90 PSIA
Air Consumption
20 SCFM
Socket Speed
500 RPM
Weight
2 lb.
Socket Size
A C to C
B Overall
C Edge Distance
D Width
ALL
2.219
3.040
0.360
0.387
Collar Driving Hex (Matches Socket Hex)
Pin Recess Hex
(Matches Super-Key Hex)
Complete Driver Assy.
Offset Adaptor & Socket Assy.
3/16”
1/16”
HLA1202-187-062T
HLG327-187-062T
7/32”
HLA1202-218-062T
HLG327-218-062T
1/4”
HLA1202-250-062T
HLG327-250-062T
9/32”
HLA1202-281-062T
HLG327-281-062T
5/16”
HLA1202-312-062T
HLG327-312-062T
11/32”
HLA1202-343-062T
HLG327-343-062T
7/32”
5/64”
HLA1202-218-078T
HLG327-218-078T
1/4”
HLA1202-250-078T
HLG327-250-078T
9/32”
HLA1202-281-078T
HLG327-281-078T
5/16”
HLA1202-312-078T
HLG327-312-078T
11/32”
HLA1202-343-078T
HLG327-343-078T
